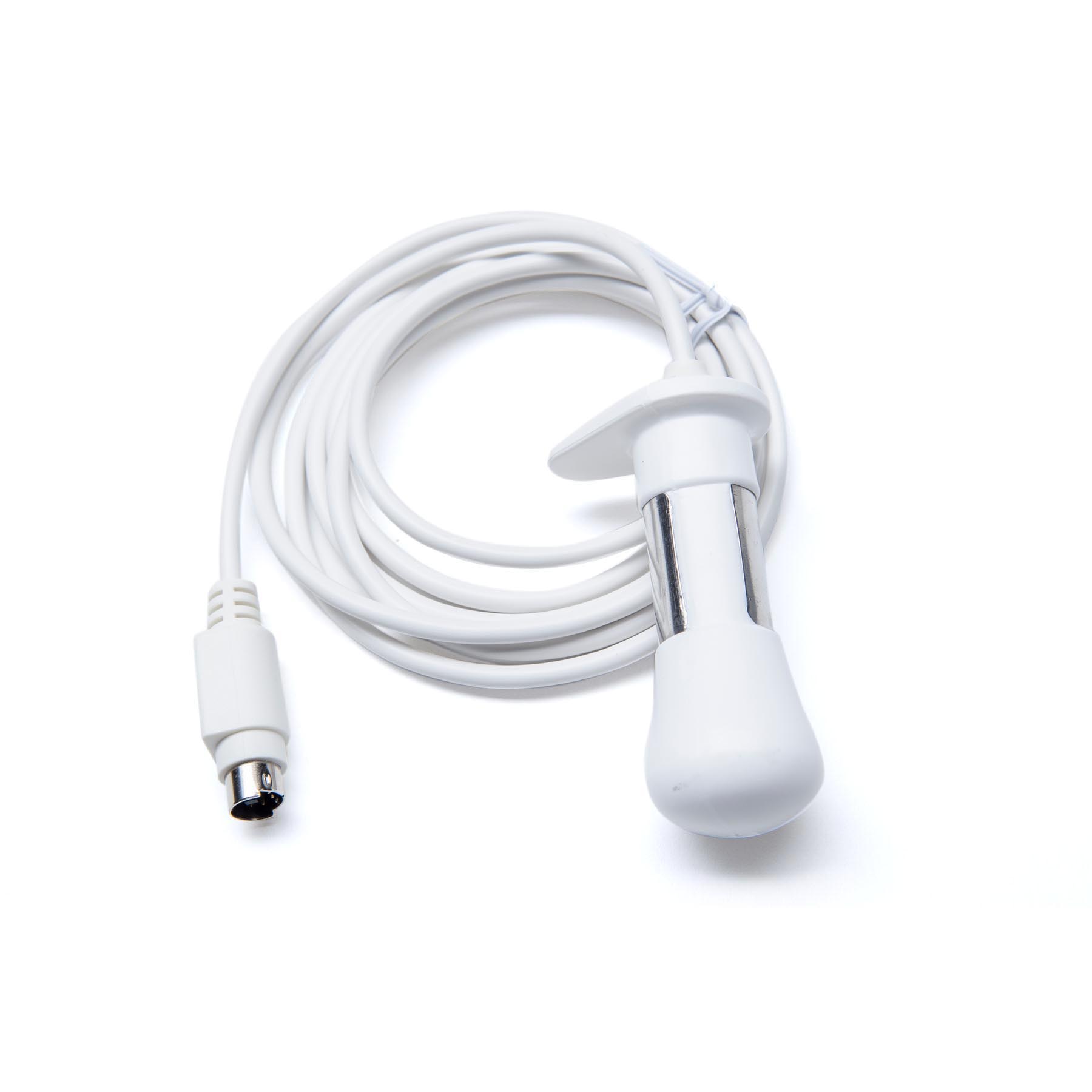

The PG-6330 is an internal combination sEMG Biofeedback and Pelvic Floor Stimulation (PFS) vaginal sensor.

PG-6330 Features

• This sensor is a single patient multi use vaginal sensor and cannot be shared between patients.
• The vaginal sensor has a tab for insertion identification.
• The tab should be facing up towards the pubis in order to achieve the desired placement.
• The vaginal sensor features a bulb at the end.
• The bulb helps the sensor to seat correctly in the vagina and guards against expulsion for those patients who are extremely weak or have a prolapse.

PG-6330 Sensor Use

The PG-6330 vaginal sensor has three elongated nickel contact points. These contacts act as your two active and one reference electrode during sEMG biofeedback training.

The length and width of the contacts provide a larger area of disbursement. The clinician can deliver more comfortable Pelvic Floor Stimulation to the patient.

This sensor will directly connect to the Pathway CTS systems through port A of the device. It uses that port to record sEMG biofeedback and deliver PFS.

The sensor will also connect to the Pathway MR and TR series sEMG instrumentation through the use of the PG-3660 adapter.

The PG-6330 will directly input into the PG-STM-10 and can work with the liberty PFS unit with the use of the PG-3700 adapter.

PG-6330 Cleaning

As a single patient multi use item, cleanup is simple. The recommended cleaning for the sensor is soap and water and allow the PG-6330 sensor to air dry.

For infection control purposes it is recommended that the clinician not store the sensors for individual patients in the clinic.

Patients should take their sensors with them and bring them back to the clinic on their next visit.

PG-6330 Manufacturing

The PG-6330 uses #304 stainless steel and includes 8% nickel. This product does not contain any rubber or latex materials.
